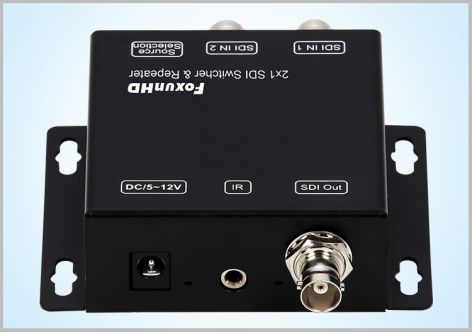

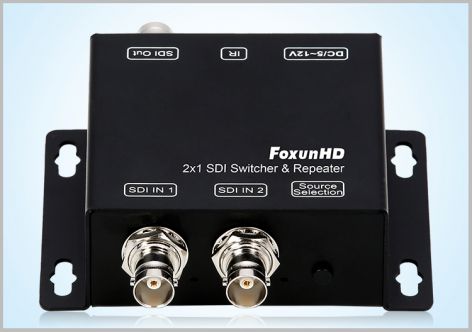

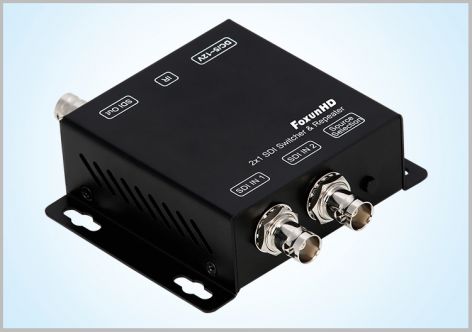

SDI-201 2x1 SDI Switch &Repeater with Re-clocking Function
SDI-201
1 Feature
l Switch 2 SDI inputs to 1 SDI Monitor
l Support SDI Standard :SD-SDI,HD-SDI, 3D-SDI
l Single unit can transmit up to 120m/390ft (Beldon 1694A)
l Re-clocking function capability---unlimited repeater connection
l With mounting ears
l Power consumption:2watts
l Dimension (L×W×H):105x93x30mm
2 SPECIFICATIONS
|
Re-clocking Function |
Yes |
|
SDI Standards |
SD-SDI, HD-SDI,3G-SDI |
|
Supported Protocols |
SMPTE 259M
SMPTE 292M
SMPTE 424M |
|
Data Rates |
270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI) |
|
Video Support |
480i@60hz, 720p@50/59.94/60hz, 1080i@50/59.94/60hz, 1080p@23.98/24/25/29.97/30/50/59.94/60hz |
|
SDI Signal Type |
SMPTE-292M, SMPTE-259M, SMPTE-424M |
|
Output Impedance |
75 ohms |
|
Cable Equalization |
HD-SDI up to 120m
SD-SDI up to 200m
Unlimited repeater connection |
|
Audio Sampling rate |
48Khz |
|
Impedance |
75 ohms |
|
Input |
2x BNC [SDI] |
|
Output |
1x BNC [SDI] |
|
Power Adapter |
5V 1A DC |
|
Power Consumption |
2W |
|
Dimension(LxWxH) |
105x93x30mm |
|
Operating Temperature |
0°C ~ 65°C / 32°F ~ 149°F |
|
Storage Temperature |
-20°C ~ 65°C / -4°F ~ 149°F |
|
Relative Humidity |
20~90% RH (no condensation) |
|
Housing Material |
Metal case |
Note: Specifications are subject to change without notice. Mass and dimensions are approximate.
