HDBaseT Ultra Slim Extender HBT270
FX-HBT270
Feature
l Bandwidth up to 18Gbps, resolution up to 4k @60hz YUV 4:4:4
l Transmit up to 70m under 1080p, 40m under 4k
l Support HDR10, 3D

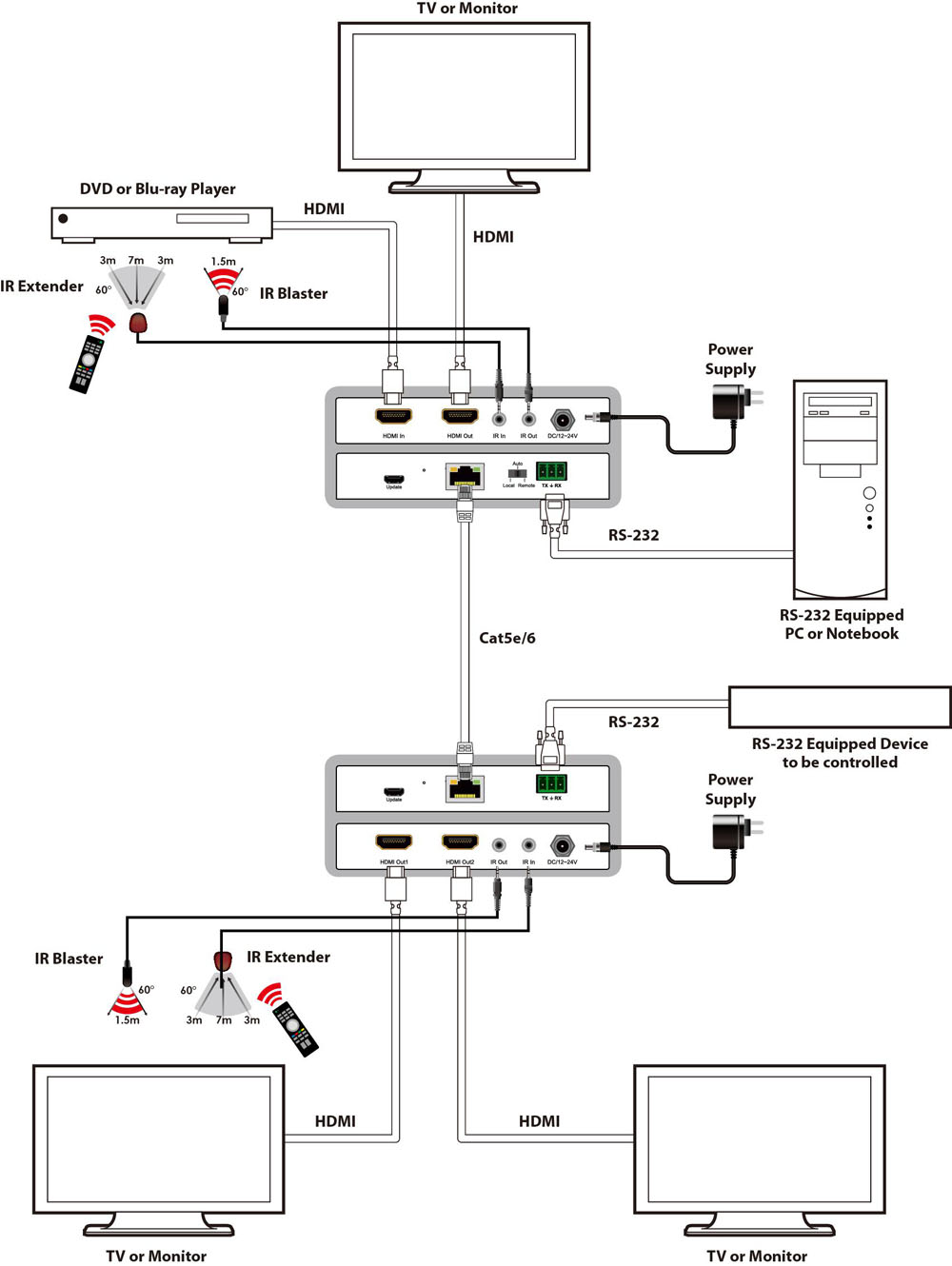

l With 1x looping HDMI out at Transmitter and 2 x HDMI out at Receiver
l Bi-directional wide band IR and RS232 Pass through
l Dual POC (Receiver powered by transmitter or transmitter powered by Receiver)
l DC 24V/1A Power Supply.
l Power Consumption：12watts
l Dimension (L×W×H):139.4x66.8x20mm
l Net Weight:540g
SPECIFICATIONS
|
Operating Temperature Range |
-10 to +55°C (14 to +131 °F) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Support Video Format |
DTV/HDTV;
4K/1080P/1080i/720P(50HZ)/576P/480P/576i/480i |
|
Output Video |
HDMI 2.0+HDCP1.4/2.2 |
|
Output Audio |
Support DTS-HD, Dolby-HD |
|
Support Audio Format |
DTS-HD Master Audio/Dolby true-HD etc |
|
Maximum Transmission Distance |
70 meters for 1080P, 40 meters for 4K |
|
Power Supply |
24V/1A |
|
Poc |
Power from TX to RX over Cat5/6 cable |
|
Power consumption |
12watts(Max) |
|
Dimension (L×W×H) |
139.4x66.8x20mm |
|
Net Weight |
540g(Pairs) |
Note: Specifications are subject to change without notice. Mass and dimensions are approximate.
